mini super automatic power timer switch 12v dc

Ask Lasest Price
Brand Name :	Kampa
Model Number :	AH2-Y
Price :	$5.00/Pieces

Add to Cart

Product Details
Company Profile

mini super automatic power timer switch 12v dc

mini super automatic power timer switch 12v dc

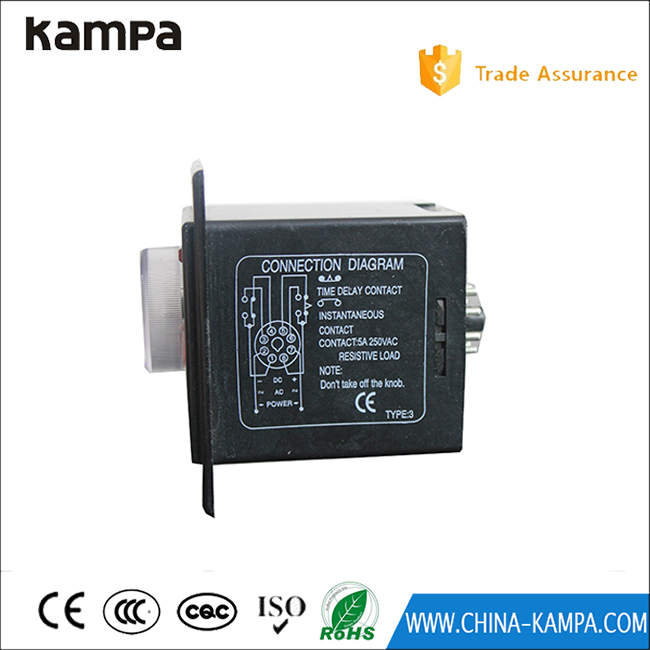

1.Pictures of time relay

mini super automatic power timer switch 12v dc

2.Specifications of time relay

CLASSIFICATION		TIMER			TIMER
MODEL		ASTP-N		ASTP-Y	AH2-N		AH2-Y
DIMENSIONS		61H49W70D		88H58W68D	61H49W70D		88H58W68D
MOUNTING &SOCKET	SURFACE(-N)	PF083A(E)PS-08			PF083A(E)PS-08
	FLUSH(-Y)			US-08 P3G-08			US-08 P3G-08
FULL TIMING RANGE		SEC:1, 3, 6, 10, 12, 30, 60 MIN:3, 6, 12, 30, 60 HR: 3, 6, 12, 24			SEC:1, 3, 6, 12, 30, 60 MIN:3, 6, 12, 30, 60 HR: 3, 6, 12, 24
RATED VOLTAGE		DC(V):12, 24 AC(V):12, 24, 110, 220, 240 50/60HZ			DC(V):12, 24 AC(V):12, 24, 110, 220, 240 50/60HZ
INDICATOR OPERATING		Time Operating			ON-UP Two indicator Lamp
O/P CONTACT	MODEL	ASTP-N1/ ASTP-Y1	ASTP-N2/ ASTP-Y2	ASTP-N/ ASTP-Y	AH2-N1/ AH2-Y1	AH2-N2/ AH2-Y2	AH2-N/ AH2-Y
	TIME LIMIT 1C	5A		5A	5A		5A
	TIME LIMIT 2C		5A			5A
	INSTANTANEOUS 1C			5A			5A
LIFE	MECHANICAL	5*10^6 times			5*10^6 times
	ELECTRICAL	10^5 times			10^5 times
ACCURACY	REPEAT ERROR	±1% max			±1% max
	SETTING ERROR	±10% max			±10% max
	VOLTAGE ERROR	±1% max			±2% max
	TEMP. ERROR	±2% max			±2% max
REST TIME		0.1 sec max			0.1 sec max
CONSUMED POWER		2VA			3VA
AMBIENT TEMPERATURE		-10°c~+55°c			-10°c~+55°c
AMBIENT HUMIDITY		48-85%RH			48-85%RH
WEIGHT		220g			220g
CONNECTION DIAGRAMS& TIMING CHART		37A	37B	37C	37D	37E	37F
