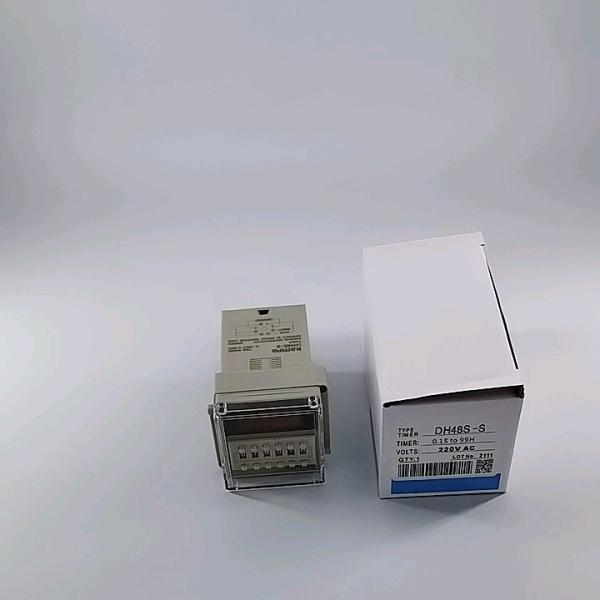

DH48S-2Z 12vdc 24vdc 220vac 380vac Digital Timer
6 time range adjustable 0.1s~99h on-delay time relay
Item | Digital Display Time Relay |
Model | DH48S/DH48S-S |
Operating power | AC220V, 380V 50HZ; DC12V, 24V |
Pole size | 45*45mm |
Contact capacity | 5A AC220V (Resistance) |
Contact form | JSS48A: DPDT with reset and pause function
DH48S: SPDT with reset and pause function
DH48S-2Z: DPDT
JSS48A-2Z: DPDT with connect wire after panel
DH48S-S1: SPDT with reset and pause function
DH48S-S2: DPDT |
Operating pattern | DH48S: ON-delay DH48S-S: Circular delay |
Delay Accuracy | ≤0.5% |
Timing range | DH48S: 0.01~99.99s 1s~99m99s 1m~99h99m DH48S-S: 0.1s~99h |
Outline size | 123*48*48mm |
Mounting type | front-panel,din rail,device |
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such
as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction
box and so on.
We are manufacturer and have ten years experience in Electrical
industry.
A.Punctual delivery time:
We carry out your order into our well-organized production
schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is
shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary
Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
