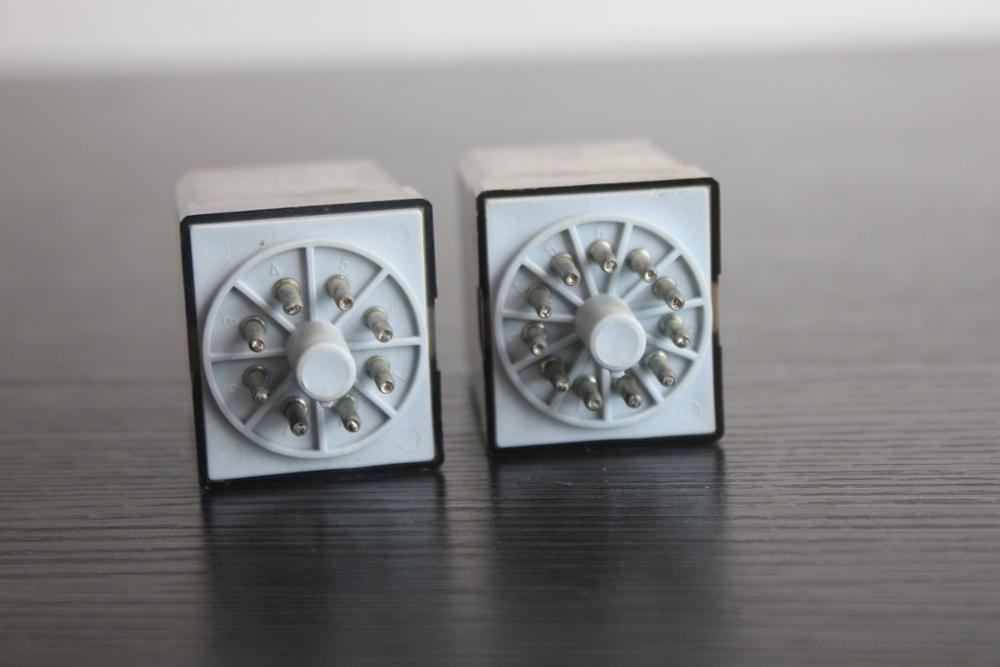

60.13 Type Coil AC 220V 11 Pins 3PDT Electric Power Relay with
socket
1.SPECIFICATION
| General Purpose Relay: 60.12, 60.13 |
| Coil voltage: DC6-110V, AC6-240V |
| Contact Specification |
| Contact form | 2Z,2H,2D 3Z.3H,3D |
| Contact resistance | ≤100MΩ(1A 6VDC) |
| Contact material | AgCdO |
| Contact capacity | 10A 250VAC/28VDC |
| Technical Specification |
| Insulation resistance | ≥500MΩ.500VDC |
| Dielectric strength | BCC ≥1500VAC 1min |
| BOC ≥1000VAC 1min |
| Operate / Release time | ≤20ms/20ms |
| Terminal type | Socket mounting |
| Coil Specification |
| Rated coil power 1.5w/2.5VA |
| Coil Data |
Nominal voltage
VDC | Operate voltage
VDC | Release voltage
VDC | Coil resistance
Ω±10% | Nominal voltage
VAC | Operate voltage
VAC | Release voltage
VAC | Coil resistance
Ω±10% |
| 6 | 4.8 | 0.60 | 24 | 6 | 4.80 | 1.80 | 4.6 |
| 12 | 9.6 | 1.20 | 96 | 12 | 9.60 | 3.60 | 20 |
| 24 | 19.2 | 2.40 | 384 | 24 | 19.20 | 7.20 | 80 |
| 48 | 38.4 | 4.80 | 1540 | 48 | 38.4 | 14.40 | 320 |
| 100 | 80.0 | 10.0 | 6660 | 110/120 | 88.0 | 36.00 | 1700 |
| 110 | 88.0 | 11.00 | 8066 | 220/240 | 176.0 | 72.00 | 7400/876 |
Yueqing Kampa Electric Co.,Ltd. is Established in 1990.Has variety of goods ,such
as Relay,Circuit breaker,Switches,Thermocouple,Thermostat,Temperature controller,
Switch power supply,AVS,Heat sink,Heater,Distribution box,Junction
box and so on.
We are manufacturer and have ten years experience in Electrical
industry.
A.Punctual delivery time:
We carry out your order into our well-organized production
schedule, ensure your punctual delivery time.
Production report before your order packed.
Shipping notice and photos sent to you as soon as your order is
shipped.
B.After sales service:
We Pay high Attention To Your Feed back after receive the goods.
We Provide 12 months warranty after goods arrive.
We Promise All Parts Available in lifetime use.
We Positively Revert Your Complain Within 48hours.
C.Professional Sales:
We value every Inquiry Sent To Us, Ensure Quick Competitive Offer.
We Cooperate With Customer To Bid Tenders. Provide all Necessary
Documents.
We Are A Sales Team, With AllTechnical Support From Engineer Team.
