super electronic pcb mechanical timer relay switch AC250V 5A

Ask Lasest Price
Brand Name :	Kampa
Model Number :	ST2P
Supply Ability :	100000 Piece/Pieces per Month
Price :	$2.00 - $11.00/Pieces

Add to Cart

Product Details
Company Profile

super electronic pcb mechanical timer relay switch AC250V 5A

super electronic pcb mechanical timer relay switch AC250V 5A

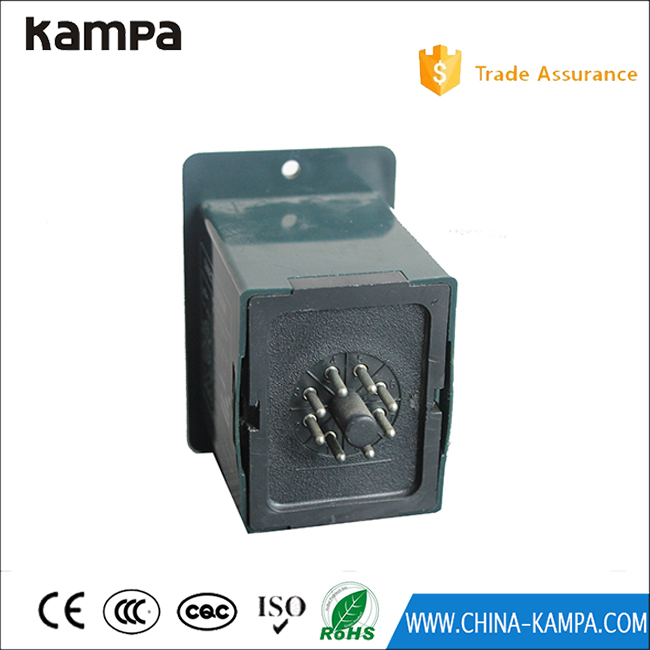

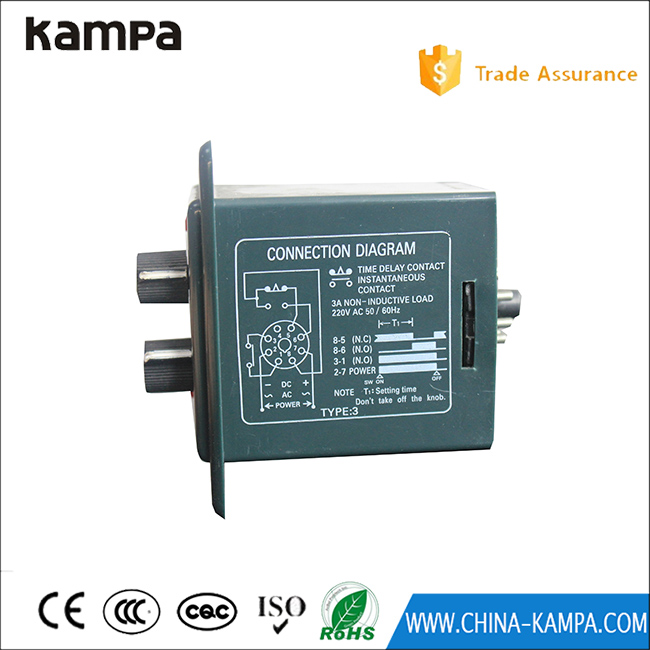

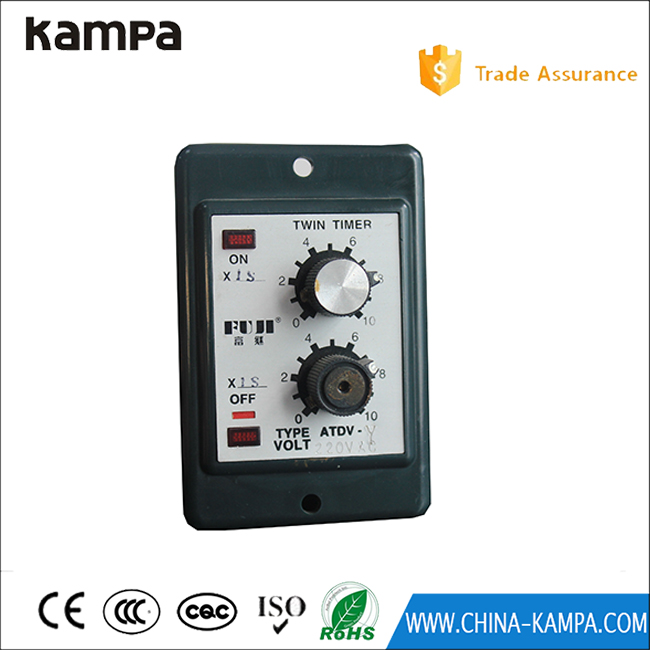

1.Pictures of time relay

super electronic pcb mechanical timer relay switch AC250V 5A

2.Specifications

Classification	Multi Range Timer	Twin Timer	Twin Timer
Sepecification Model	AH2-N/Y	ATDV-N	ATDV-Y
Dimension	61H×48W×70D 88H×58W×68D	61H×48W×70D	88H58W68D
Mountin&Socket	Surface(-N)	PC2F-08 PS-08	PF083A
Mountin&Socket	Flush(-Y)	PF083A	US-08 P3G-08
Full Timing Range	A: 1S,10S,1M,10M B: 3S,30S,3M,30M C: 6S,60S,6M,60M D: 1M,10M,1H,10H E: 3M,30M,3H,30H	6S×6S,6S×60S, 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request	6S×6S,6S×60S, 30S×30S, 30S×60S 60S×6S,60S×60S, 6M×6M,6M×60M, 60M×6M,60M×60M, Longest time 12Hours upon clients' request
Rated Voltage (V)	AC: 12,24,110,220, 240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24	AC: 12,24,110,220,240 50/60Hz DC: 12,24
Indicator Operating	ON-UP Two Indicator Lamp	ON,OFF Operating	ON,OFF Operating
O/P Contact	Model	AH2-N/AH2-Y	ATDV-N	ATDV-Y
	Time limit 1C	5A	5A	5A
	Time limit 2c
	Instantaneous 1c	5A
Life	Mechanical	5×106 Times	5×106 Times	5×106 Times
Life	Electrical	105 Times	105 Time	105 Times
Accuracy	Repeat Error	±1% max	±1% max	±2% max
	Setting Error	±10% max	±10% max	±20% max
	Voltage Error	±1% max	±1% max	±1% max
	Temp Error	±2% max	±2% max	±2% max
Reset Time		0.1 sec max	0.2 sec max	0.2 sec max
Consumed Power		3VA	3VA	3VA
Ambient temperature		-10oC~+55oC	-10oC~+55oC	-10oC~+55oC
Ambient Huminity		48~85% RH	48~85% RH	48~85% RH
Weight		220g	160g	210g
