Cabinet Thermostat Temperature Controller Normally Open (NO) Kts011

Ask Lasest Price
Brand Name :	Kampa
Model Number :	kts011
Price :	$1.50/Pieces 10-99 Pieces

Add to Cart

Product Details
Company Profile

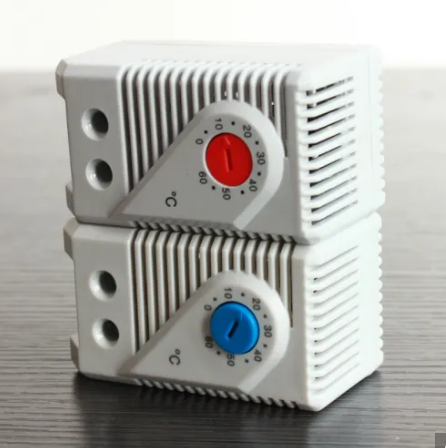

Cabinet Thermostat Temperature Controller Normally Open (NO) Kts011

Cabinet Thermostat

Temperature Controller Normally Open(NO) KTS011

Thermostat (NO): Thermostat closes on temperature rise - for regulating filter fans and heat exchangers or for switching signal devices. Com

Specification
Large setting range
Small Size
Simple to mount
Hight switching performance

Switch temperature difference	7K (± 4K tolerance)
Sensor element	thermostatic bimetal
Contact type	snap-action contact
Contact resistance	< 10mO
Service life	> 100 000 cycles
Max. switching capacity	250VAC, 10 (2) A ,120VAC, 15 (2) A
Max. switching capacity	DC 30W
EMC	acc. to EN 55014-1-2, EN 61000-3-2, EN 61000-3-3
Connection	2-pole terminal, clamping torque 0.5Nm max.: rigid wire 2.5mm², stranded wire (with wire end ferrule) 1.5mm²
Mounting	clip for 35mm DIN rail, EN50022 (or for exit filter EF 118 Series)
Casing	plastic according to UL94-HB, black
Dimensions	60 x 33 x 43mm
Weight	approx. 40g
Fitting position	variable
Operarting/Storage temperature	-45 to +80°C (-49 to +176°F)
Protection type	IP20
