PID temperature controller CD101 48*48 0-400C temperature regulator

Ask Lasest Price
Brand Name :	Kampa
Model Number :	CD101
Supply Ability :	100000 Piece/Pieces per Month
Price :	$8.28 - $13.00/Pieces

Add to Cart

Product Details
Company Profile

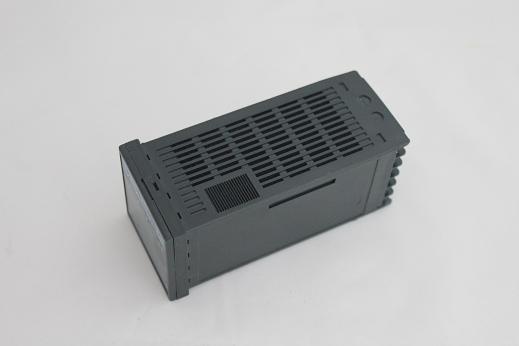

PID temperature controller CD101 48*48 0-400C temperature regulator

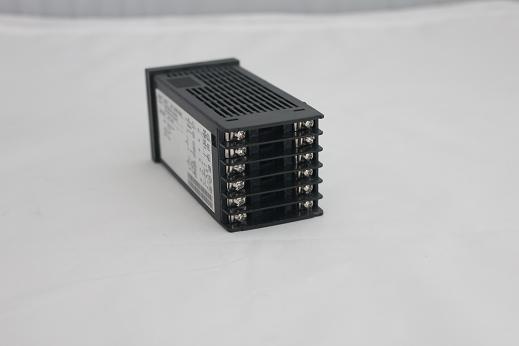

PID temperature controller CD101 48*48 0-400C temperature regulator

Technical Data

1.Outline dimension	See the outline dimension picture
2.Control Mode	F:PID operation and auto calculating (reverse operation)	D:PID operation and auto calculating(Forward operation)
2.Control Mode	W:eating/cooling PID operation and auto calculating(cooling water)*1	A:heating/cooling PID operation and auto calculating(cooling water)*1
3.Input mode	Refer to Input Range Table
4.Range Code	Refer to Input Range Table
5.First control output(OUT1) (Heating side)	M: Relay contact output V: Voltage impulse output T: Thyratron output	8: Current output(IC4-20mA) G: Thyratron driving & triggering output
6.Second control output( OUT2) (Cooling side)*2	No mark: when the control mode is F or D M: Relay contact output V: Voltage impulse output	T: Thyratron output 8: Current output(IC 4-20mA)
7.First alarm(ALM1) 8.Second alarm (ALM2)*2	N: no alarm A: Upper-limit bias alarm B: Lower-limit bias alarm C: Upper/lower limit bias alarm D: alarm in area E: Standby upper-limit bias alarm attached F: Standby lower-limit bias alarm attached G: Standby upper/lower limit bias alarm H: Upper-limit input value alarm	J: lower-limit input alarm K: Standby upper-limit input alarm attached L: Standby lower-limit input alarm attached P: Heater breakage alarm(CTL-6)3 S: Heater breakage alarm(CTL-12)3 R: Control line breakage alarm *4 V: Upper-limit set value alarm W: Lower-limit set value alarm
9.Communication*5	N:No communication	5:RS-485(two-wire system)
10.Water-proof/dust-proof	N:no water-proof/dust-proof	1:with water-proof/dust-proof

PID temperature controller CD101 48*48 0-400C temperature regulator
