LJ4A3-1-Z/BY DC type PNP NO inductive proximity sensor switch

1.Specification

Product information
Type				LJ4A3-1
Product image

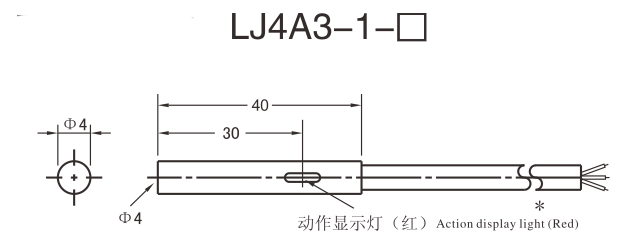

Dimension
Mounting way				Screen shield type
Type	DC type	NPN	NO	LJ4A3-1-Z/BX
			NC	LJ4A3-1-Z/AX
			NO+NC
		PNP	NO	LJ4A3-1-Z/BY
			NC	LJ4A3-1-Z/AY
			NO+NC
		Two-wire	NO
			NC
	AC type	Two-wire	NO
			NC
		Three-wire	NO+NC
Detection distance				1mm ± 10%
Set distance				0-0.7mm
Delay distance				10% below of the detection distance
Detection object				Magnetic metal(the detection distance decreases when it is non-magnetic metal)
Standard detection object				Iron 8*8*1mm
Response frequency				DC:0.5kHz AC:25kHz
Supply voltage				DC type:DC 12-24V(6-36V)Impulse(P-P)10% below AC type:AC 110-220V(36-250V)50/60Hz
Withstand voltage				AC1000V 50/60HZ 1min between charging part and housing
Voltage influence				Inside ±15% rated supply voltage range, at rated supply voltage value, inside ±10% detection distance
Consumption current				N.P type:13mA below, D type:0.8mA below,A type:1.7mA below
Control output				N.P type:300mA below, D type:200mA below,A type:400mA below
Loop protection				N.P.D type:reversal connection protection,surge absorption,load short-circuit protection,A type:surge absorption
Ambient temperature & humidity				During operation,storage:individually -30—+65℃ ( no freeze, no drew),During operation,storage:individually 35—95% RH
Temperature influence				Temperature range -30—+65℃,at+23℃, ±15%detection distance Temperature range -25—+60℃,at+23℃, ±10%detection distance
Insulation impedance				50MΩ above(DC500 megameter)between charging part and housing
Material				Housing:Nickel plated brass Detection surface:ABS
Protection level				IP67( IEC specification)
