DC 12V heat cool temp thermostat switch temperature controller Miniature thermostat temperature control switch panel

Ask Lasest Price
Brand Name :	Kampa
Model Number :	F0004
Supply Ability :	2000000 Piece/Pieces per Month
Price :	$2.30 - $2.80/Pieces

Add to Cart

Product Details
Company Profile

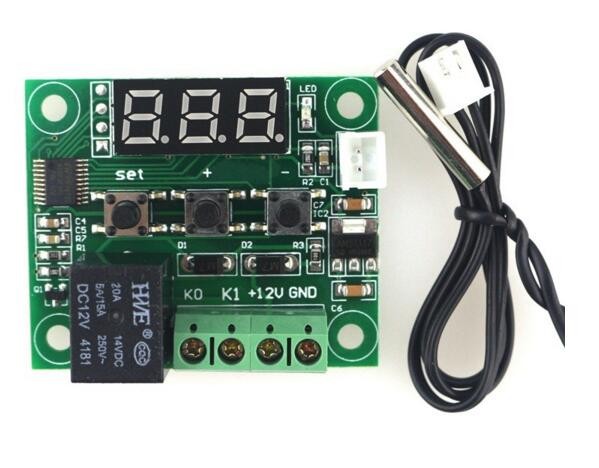

DC 12V heat cool temp thermostat switch temperature controller Miniature thermostat temperature control switch panel

specification:

Parameters:

Control range	-50 ~ 110
Input Power	DC 12V
Resolution	-9.9-99.9 0.1 , other temperature ranges 1

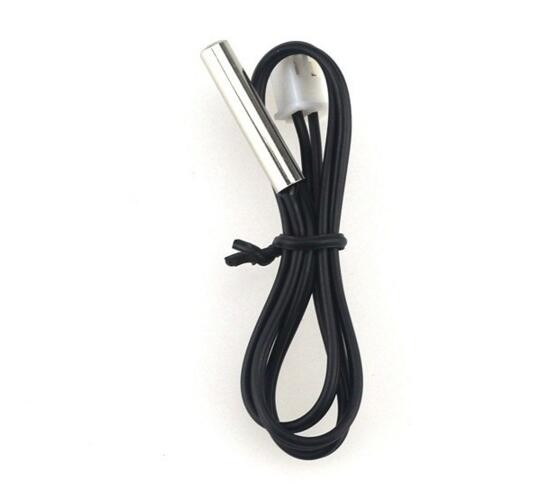

Measuring inputs	NTC (10K 0.5%) Waterproof sensor 32cm
Measurement accuracy	0.1
Output range	1 way 10A relay
Control accuracy	0.1
Environmental requirements	-10-60 , humidity 20% -85%
Hysteresis accuracy	0.1
Size	48 * 40mm
Refresh rate	0.5S
Power consumption	Static current: <= 35MA,attract current:<= 65MA
Temperature protection	0-110
Display Type	0.28 " three digital display tube

How to use:

Connect the power supply and the load, you can supply to the controller,Is displayed as a measured temperature,Press the SET button, the display flashes the temperature,Press + - to set the desired temperature,After setting press SET to confirm return,The controller automatically performs the relay by setting off!
Lights, LED status descriptions:Indicator: Off The relay is switched off, Always indicate the relay is closed.LED: Shows LL is the sensor open, showing HH is out of range, the thermostat will be forced to close the relay, the display --- as high temperature protection.
Parameter Function:Long press SET 5 seconds to enter the main menu settings, press the + - toggle P0 ... P8 long press SET or 10 seconds of no key activity confirmed their return to the controller

Code Code Description Setting range Factory setting

P0 Cooling /Heating C/H C

P1 Hysteresis setting 0.5-15 2

P2 Highest setting upper limit 110 110

P3 Lowest setting upper limit -50 -50

P4 Temperature correction -7-7 0

P5 Delay start time 0-10 Minutes 0

P6 High temperature alarm 0-110 OFF

Off state, long press + - boot to restore the factory settings

Package Included:

1 * Temperature Controller

DC 12V heat cool temp thermostat switch temperature controller Miniature thermostat temperature control switch panel

specifications:

· Product Name : Wire connector

· Model : PCT-104

· Suitable wire gauge(solid): 0.75 - 2.5 mm⊃2;(18-12 AWG)

· Suitable wire gauge(Stranded): 1.5 - 2.5 mm⊃2;(16-12 AWG)

· Rated voltage: 250v

· Rated Amp: 24A

· Measured shock voltage: 4KV

· Color: orange

Package:polybag
